Infrared Short Emitter

TYPE : J
Machine brand	Voltage (V)	Power (W)	OAL (mm)	FL (mm)	CL (mm)	T° (K)	Average life (Hr)	Burning position	Tube (mm)	Reflector	WL1 WL2 (mm)	Terminal	Philips Dr Fischer	Victory Lighting	Ushio Ref/Art	Fiche
-	235	1000	480	370	272	2350	5000	Horizontal	10	None		Metal clip	13195X	64241027	QIH 240-1000S 191029	IC-339
-	235	1000	480	370	272	2350	5000	Horizontal	10	White		Metal clip	13195X/98	64241053	QIH240-1000ZS 191089	IC-340
-	235	1000	480	370	272	2350	5000	Universal	10	None		Metal clip	13713X	64241028	QIH240-1000/VS 191009	IC-018
-	235	1000	480	370	272	2350	5000	Universal	10	White		Metal clip	13713X/98	64241053	QIH240-1000VZS 191099	IC-341
-	235	2000	480	370	285	2425	5000	Universal	10	None		Metal clip	13168X	64242021	QIH 240-2000/VB	IC-049
-	235	2000	480	370	285	2425	5000	Universal	10	White		Metal clip	13168X/98		194099	IC-342
-	400	2000	618	508	410	2400	5000	Horizontal	10	None		Metal clip	13245X	64382021	311011	IC-009
-	400	2000	618	508	410	2400	5000	Universal	10	None		Metal clip	13765X			IC-008
-	400	2000	618	508	410	2400	5000	Horizontal	10	White		Metal clip	13245X/98	64382051		IC-343
-	400	2000	618	508	410	2400	5000	Universal	10	White		Metal clip	13765X/98	64382051		IC-344
-	235	3000	480	370	280	2200	5000	Universal	10	None		Metal clip	13565X	64403024		IC-345
-	400	3000	908	798	700	2350	5000	Horizontal	10	None		Metal clip	13215X	64383022	QIH400-3000/B	IC-214
-	400	3000	908	798	700	2350	5000	Universal	10	None		Metal clip	13230X			IC-347
-	400	3000	908	798	700	2350	5000	Universal	10	White		Metal clip	13230X/98	64383052	QIH400-3000/VZB	IC-346

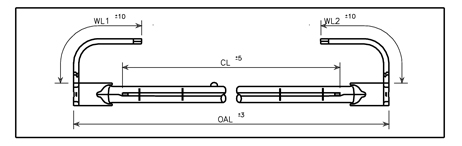

TYPE : Jc
Machine brand	Voltage (V)	Power (W)	OAL (mm)	FL (mm)	CL (mm)	T° (K)	Average life (Hr)	Burning position	Tube (mm)	Reflector	WL1 WL2 (mm)	Terminal	Philips Dr Fischer	Victory Lighting	Ushio Ref/Art	Fiche
KHS Corpoplast SIG	144	1200	219	None	155	2700	5000	Horizontal	10	White	160-160	Fork	13561Y/98	64141253	QIH144-1200/S2 194298	IC-146
KHS Corpoplast SIG	144	1600	219	None	155	2700	5000	Horizontal	10	White	160-160	Fork	13568Y/98	64141652	QIH144-1600/S 194198	IC-145

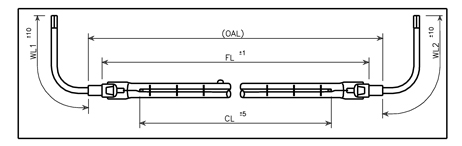

TYPE : N
Machine brand	Voltage (V)	Power (W)	OAL (mm)	FL (mm)	CL (mm)	T° (K)	Average life (Hr)	Burning position	Tube (mm)	Reflector	WL1 WL2 (mm)	Terminal	Philips Dr Fischer	Victory Lighting	Ushio Ref/Art	Fiche
SMI	400	2500	608	588	500	2650	5000	Horizontal	10	White	300-300	Splice	14140C/98	6440258		IC-138
SMI	400	3000	608	588	500	2650	5000	Horizontal	10	White	300-300	Splice	14156C/98	6440308		IC-152

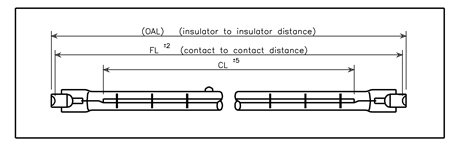

TYPE : Rs
Machine brand	Voltage (V)	Power (W)	OAL (mm)	FL (mm)	CL (mm)	T° (K)	Average life (Hr)	Burning position	Tube (mm)	Reflector	WL1 WL2 (mm)	Terminal	Philips Dr Fischer	Victory Lighting	Ushio Ref/Art	Fiche
-	230	300	117,6	114,2	60	2450	5000	Horizontal	10	None			13908R	64243021	196205	IC-127
-	235	500	221	218	165	2450	5000	Horizontal	10	None			13169R		192505	IC-328
-	220	650	547	546	501	2175	5000	Horizontal	10	None			13790R			IC-329

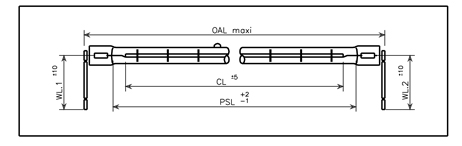

TYPE : T
Machine brand	Voltage (V)	Power (W)	OAL (mm)	FL (mm)	CL (mm)	T° (K)	Average life (Hr)	Burning position	Tube (mm)	Reflector	WL1 WL2 (mm)	Terminal	Philips Dr Fischer	Victory Lighting	Ushio Ref/Art	Fiche
-	235	2500	350	None	280	2350	5000	Universal	10	None	122-142	Ring	14182V			IC-451
-	235	2500	350	None	280	2350	5000	Universal	10	None	112-112	Splice	14190V			IC-452
-	235	3000	350	None	280	2200	5000	Universal	12	None	122-142	Ring	13565V			IC-453
